Electric bike charger 3-Pin XLR Plug 44V 4A

Product Categories
Xinsu Global Electronic Co.,Limited
Contact Now

Electric bike charger 3-Pin XLR Plug 44V 4A

Brand Name : XinsuGlobal

Model Number : XSG4404000

Certification : UL,cUL,FCC,PSE,CE,LVD,GS,SAA,RCM,C-tick,CCC.etc

Place of Origin : Shenzhen China

MOQ : 200PCS

Price : USD 32/PC

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 500000PCS/month

Delivery Time : 15-20days

Packaging Details : White box,50pcs/ctn

Product Name : Electric bike charger 3-Pin XLR Plug 44V 4A

Output : 44V ,4A

Turn Lamp Current : 1A

Colour : Black

Lead Time : 15-20day

Payment : T/T, Western Union, Paypal

Lead time : 20-25days

warranty : 3years

Contact Now

  • Brand Name: XinsuGlobal
  • Model Number: XSG4404000
  • Use: Standard Battery
  • Type: Electric
  • Place of Origin: Guangdong, China (Mainland)
  • Socket Standard: EU/AU/UK/US
  • Product name: Electric bike charger 3-Pin XLR Plug 44V 4A
  • Output Type: DC single with cable
  • Output: 44V, 4A
  • Charge Mode: Three-stage mode CC~CV
  • Turn Lamp Current: 1A
  • Colour: Black
  • Certificates: UL cUL FCC PSE CE GS LVD SAA RCM C-tick
  • Warranty: 3 years
  • Dimensions: 176*80*47mm
  • Service: ODM
  • Electric bike charger 3-Pin XLR Plug 44V 4A

Electric bike charger 3-Pin XLR Plug 44V 4A

Electric bike charger 3-Pin XLR Plug 44V 4A

Electric bike charger 3-Pin XLR Plug 44V 4A

Electric bike charger 3-Pin XLR Plug 44V 4A

Input
100-240VAC,50/60HZ
Input Connector
IEC-320-C6, IEC-320-C8, IEC-320-C14
Output
44Vdc, 4A
Output Connector
Customized
Efficiency
≥87%
No Load Power Consumption
≤0.5W
Protection Characteristic
Polarity protection, OVP; OCP; SCP;
Charge Mode
CC~CV
LED
Charging status: Red/Charging; Green/Finished
HIPOT
3KVAC,5mA,60s
MTBF
50,000HRS
Operating Temperature
-20℃~ +45℃
Storage Temperature
-30℃~ +70℃

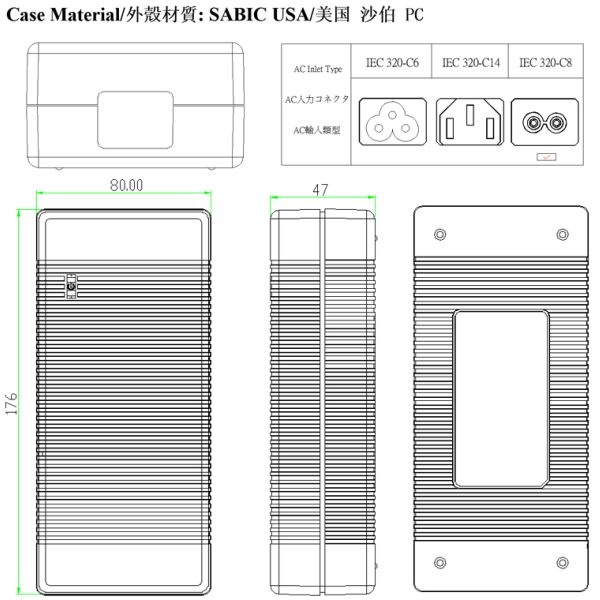

Dimension
176mm*80mm*47mm
Net Weight
0.7KG/PC
Package
White Box, 15pcs/CTN
MOQ
200pcs
Lead Time
Sample:5days,Mass production:15-20days
Safety Standards
UL60950-1,CSA C22.2,IEC60950-1,AS/NZS60950,
GB4943,EN60950,EN55022,EN61000,EN60335,J60950
Certificates
UL, cUL, FCC, PSE, CCC, CE, CB,TUV/GS, LVD, EMC, KC, RCM, SAA, C-Tick, PSB
Energy Efficiency
DOE:Ⅵ; Erp; Nrcan; MEPS
Environmental Protection
RoHS, REACH
Markets
Worldwide

Contacts: Leon Li

Skype/Email: www.xinsuglobal.com


China Electric bike charger 3-Pin XLR Plug 44V 4A wholesale

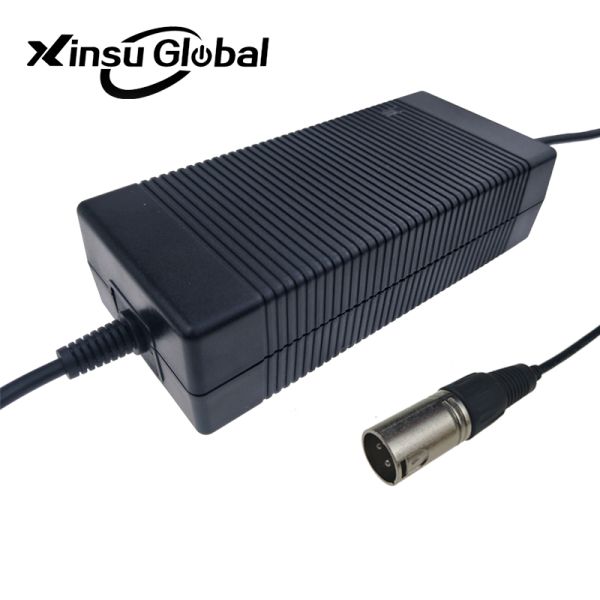

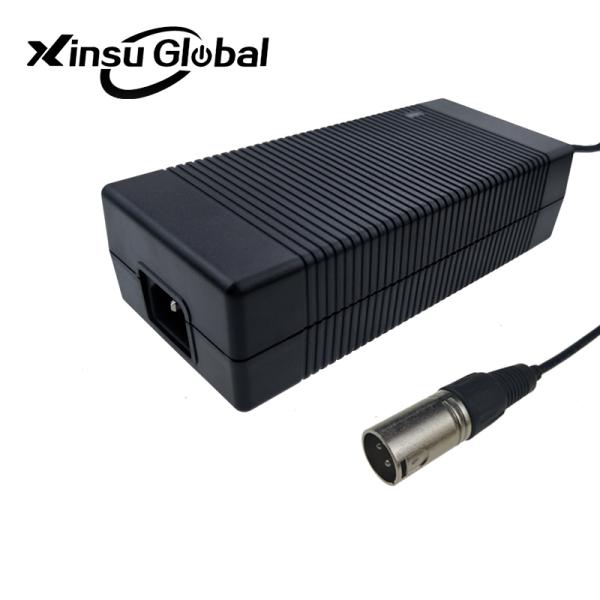

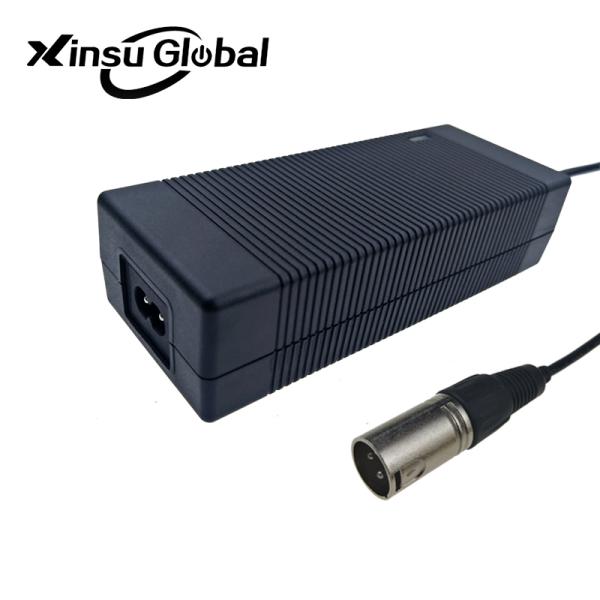

Electric bike charger 3-Pin XLR Plug 44V 4A Images
